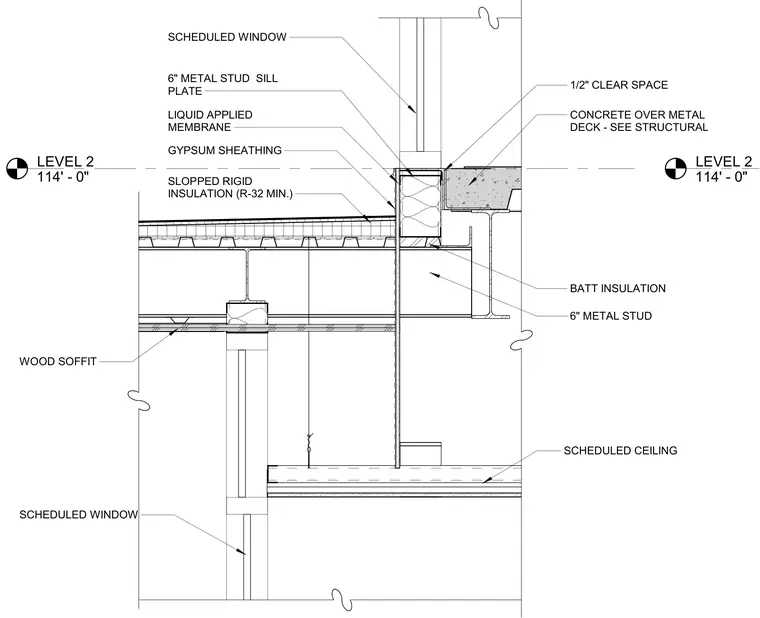

The intersection of a scheduled window above a concrete over metal deck floor assembly is separated by a one-half inch clear space. The assembly incorporates a six-inch metal stud sill plate with batt insulation and exterior gypsum sheathing, protected by a liquid-applied membrane. Sloped rigid insulation with a minimum R-32 rating bears on the roof or deck assembly below. A wood soffit and scheduled ceiling frame the lower level interior space beneath the structural steel framing.
LEVEL 2 114' - 0" LEVEL 2 114' - 0" SCHEDULED CEILING SCHEDULED WINDOW SCHEDULED WINDOW 6" METAL STUD SILL PLATE 6" METAL STUD BATT INSULATION GYPSUM SHEATHING WOOD SOFFIT SLOPPED RIGID INSULATION (R-32 MIN.) 1/2" CLEAR SPACE CONCRETE OVER METAL DECK - SEE STRUCTURAL LIQUID APPLIED MEMBRANE
