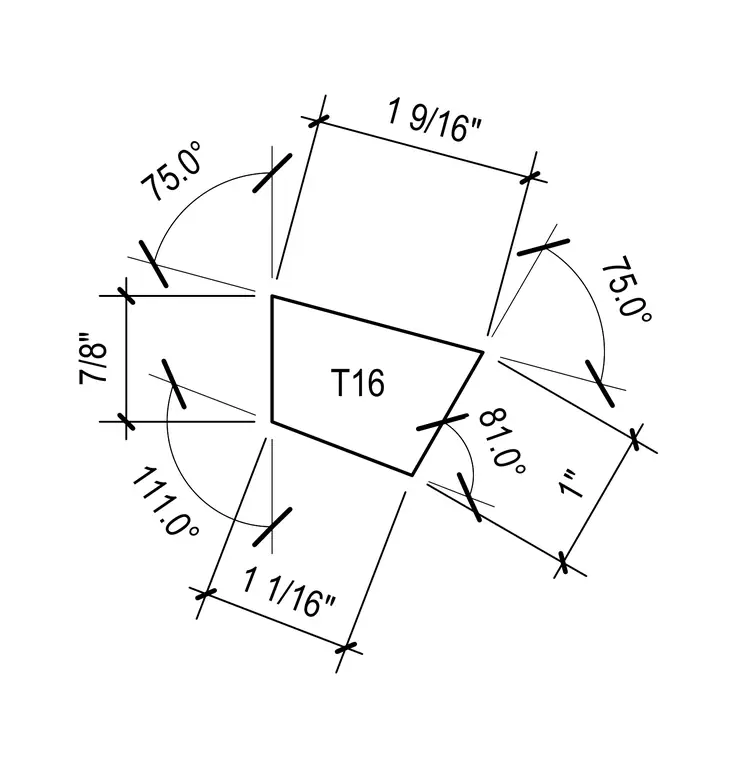

The T16 component features specific dimensional lengths and angular tolerances. The top edge measures one and nine-sixteenths inches with adjacent angles of seventy-five degrees. The left vertical edge is seven-eighths inches in length with an interior lower angle of one hundred eleven degrees. The bottom edge spans one and one-sixteenth inches, while the right side measures one inch with joining angles of eighty-one and seventy-five degrees.
