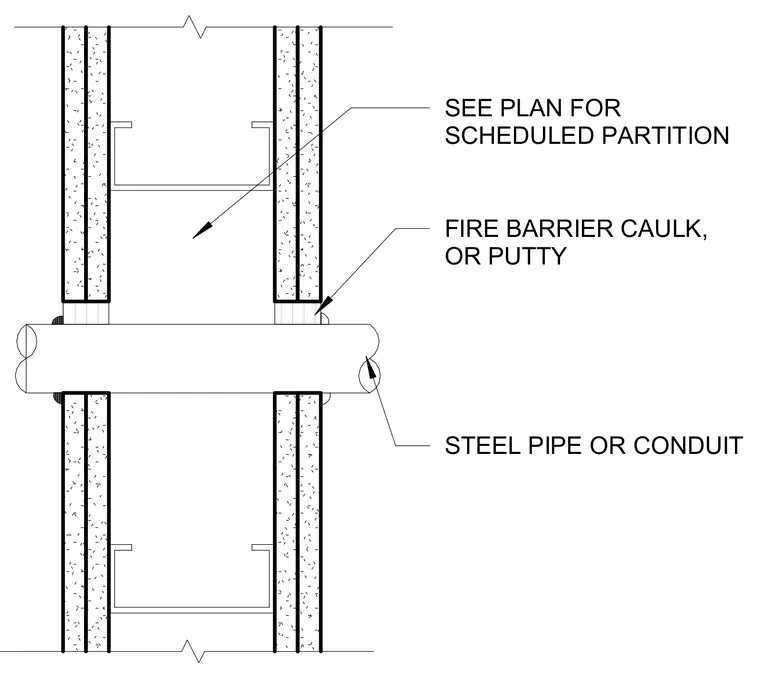

A steel pipe or conduit passes through an opening in a partition constructed with gypsum board on metal framing studs. Fire barrier caulk or putty seals the annular space around the penetration to maintain the partition rating. Partition fire barrier requirements are sized per the architectural schedule on plan.
SEE PLAN FOR SCHEDULED PARTITION FIRE BARRIER CAULK, OR PUTTY STEEL PIPE OR CONDUIT
