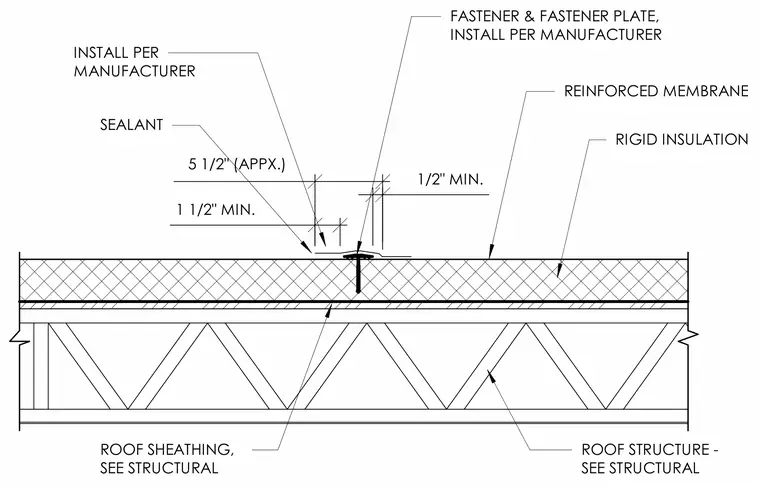

The roof assembly is supported by a structural roof structure with roof sheathing installed per structural requirements. Rigid insulation is layered above the sheathing, topped with a reinforced membrane. Fasteners and fastener plates secure the system through the insulation per the manufacturer's specifications. Sealant is applied at the joint with specific minimum clearances including one and one-half inch and one-half inch minimum dimensions, spaced approximately five and one-half inches.
1 1/2" MIN. 1/2" MIN. 5 1/2" (APPX.) ROOF STRUCTURE - SEE STRUCTURAL INSTALL PER MANUFACTURER SEALANT FASTENER & FASTENER PLATE, INSTALL PER MANUFACTURER REINFORCED MEMBRANE RIGID INSULATION ROOF SHEATHING, SEE STRUCTURAL
