An angled gypsum board cant strip is installed at elevator hoistway projections exceeding two inches to prevent catching hazards. The cant is constructed with five-eighths inch gypsum board sloped at a minimum seventy-five degrees. When the cant length exceeds twenty-four inches, two-and-one-half inch metal studs are provided at twenty-four inches on center behind the cant.

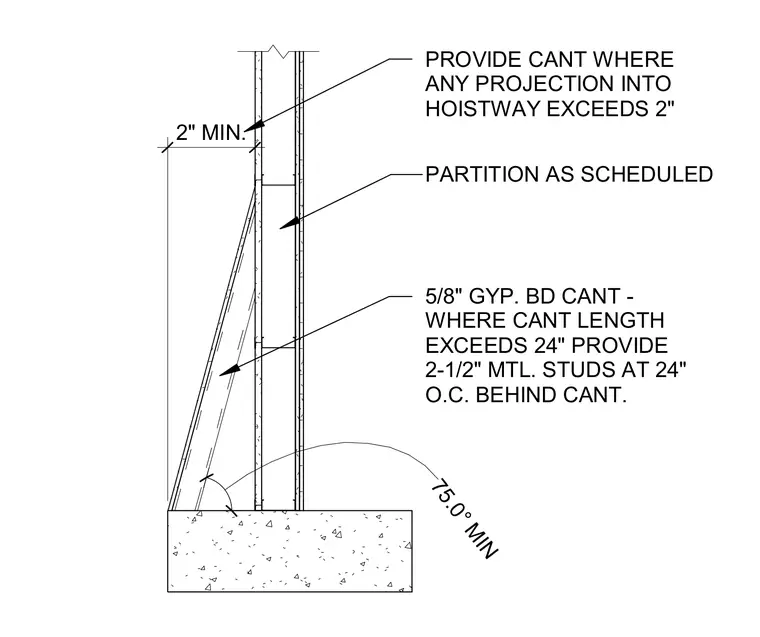

75.0° MIN 2" MIN. PROVIDE CANT WHERE ANY PROJECTION INTO HOISTWAY EXCEEDS 2" 5/8" GYP. BD CANT - WHERE CANT LENGTH EXCEEDS 24" PROVIDE 2-1/2" MTL. STUDS AT 24" O.C. BEHIND CANT. PARTITION AS SCHEDULED
