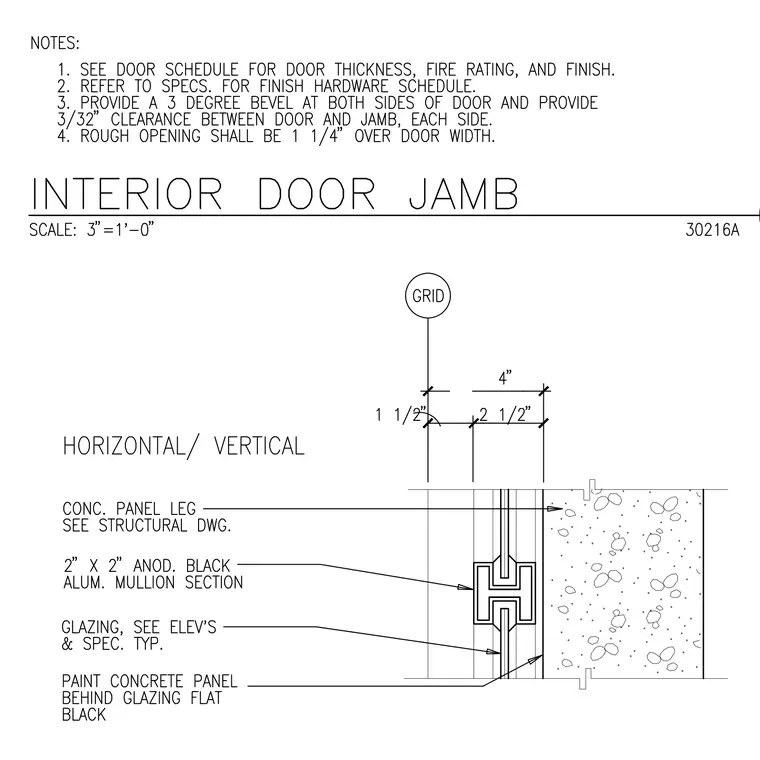

General notes specify door thickness, fire rating, finish hardware schedules, a three-degree bevel on both sides of the door, and a thirty-second inch clearance between the door and jamb on each side. The rough opening is dimensioned at one and one-quarter inches over the door width. The plan detail indicates a concrete panel leg detailed per structural drawings paired with a two-inch by two-inch anodized black aluminum mullion section. Glazing is provided per elevations and specifications, and the concrete panel behind the glazing is painted flat black.
