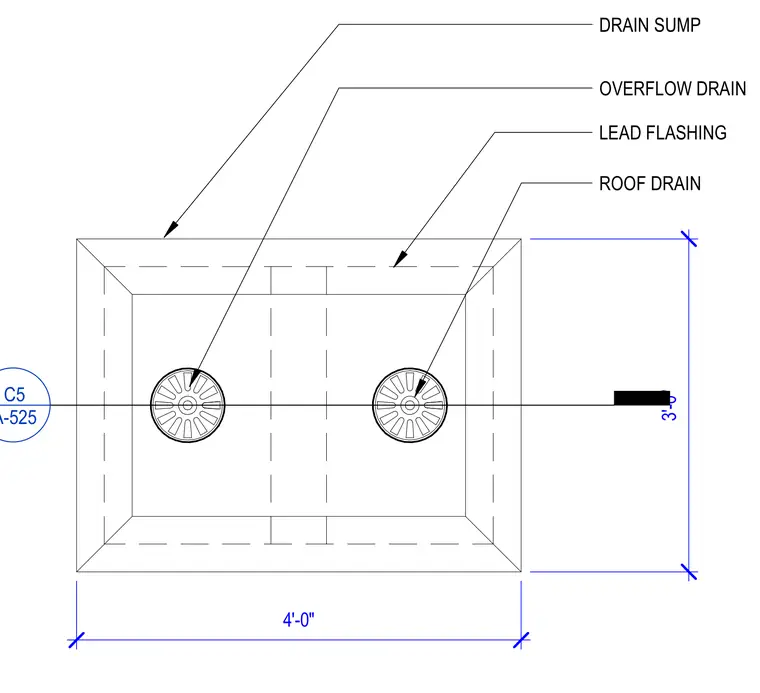

A roof drain sump measuring three feet by four feet accommodates both a primary roof drain and an overflow drain. Continuous lead flashing surrounds the drain assemblies within the depressed sump area to ensure proper waterproofing.
