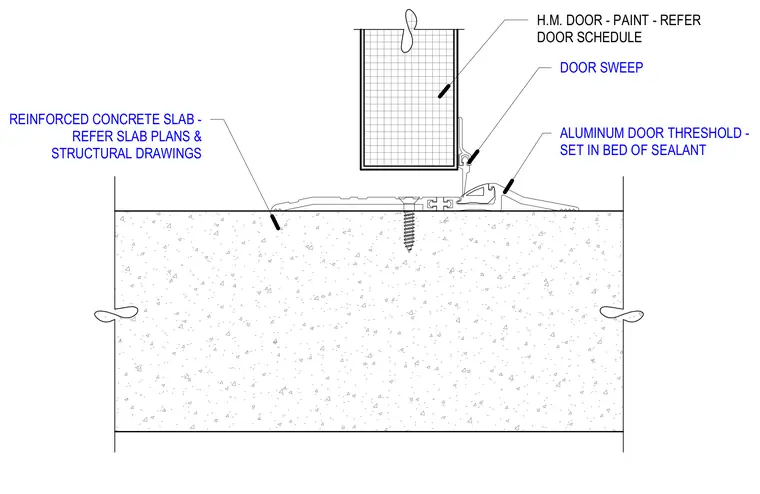

An aluminum door threshold is set in a continuous bed of sealant directly on top of a reinforced concrete slab and anchored with flathead fasteners. A painted hollow metal door rests above the threshold, fitted with a bottom door sweep to seal the gap against air and moisture infiltration.
H.M. DOOR - PAINT - REFER DOOR SCHEDULE REINFORCED CONCRETE SLAB - REFER SLAB PLANS & STRUCTURAL DRAWINGS ALUMINUM DOOR THRESHOLD - SET IN BED OF SEALANT DOOR SWEEP
