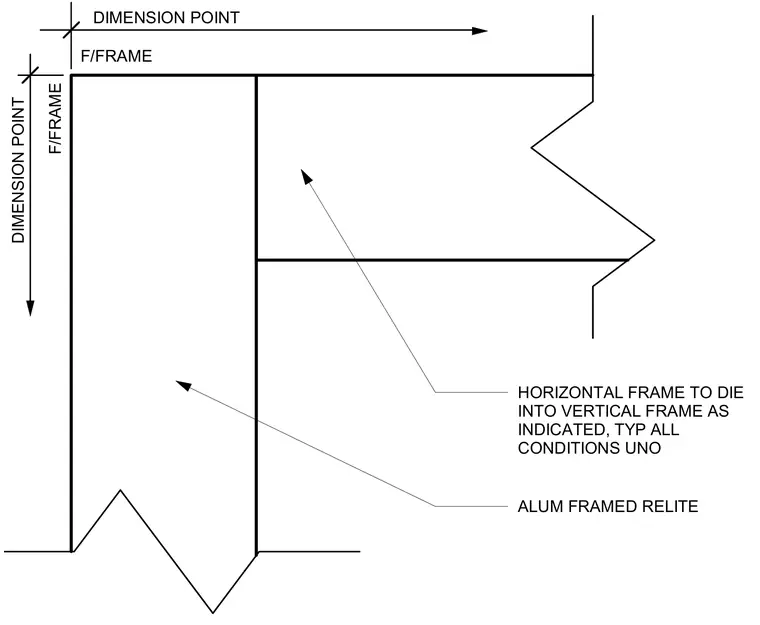

An aluminum framed relite features a horizontal frame member that dies into a vertical frame member as indicated for typical conditions unless otherwise noted. Dimension points are established from the exterior face of the frame. The assembly details the framing intersection for glazed interior windows and sidelights.
ALUM FRAMED RELITE HORIZONTAL FRAME TO DIE INTO VERTICAL FRAME AS INDICATED, TYP ALL CONDITIONS UNO DIMENSION POINT F/FRAME F/FRAME DIMENSION POINT
