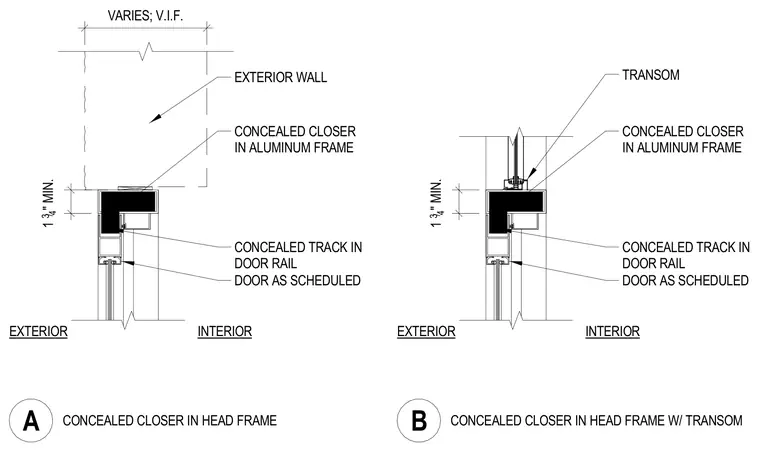

An aluminum head frame houses a concealed overhead door closer with a minimum clearance of one and three-quarters inches. A concealed track is integrated into the top door rail of the door assembly. The frame ties into the exterior wall above, with dimensions varying as verified in the field. Detail B includes a glass transom positioned directly above the aluminum head frame profile.
1 3/4 " MIN. 1 3/4 " MIN. VARIES; V.I.F. A B CONCEALED CLOSER IN HEAD FRAME INTERIOR EXTERIOR CONCEALED CLOSER IN ALUMINUM FRAME CONCEALED TRACK IN DOOR RAIL DOOR AS SCHEDULED CONCEALED CLOSER IN HEAD FRAME W/ TRANSOM INTERIOR EXTERIOR CONCEALED CLOSER IN ALUMINUM FRAME CONCEALED TRACK IN DOOR RAIL DOOR AS SCHEDULED TRANSOM EXTERIOR WALL
