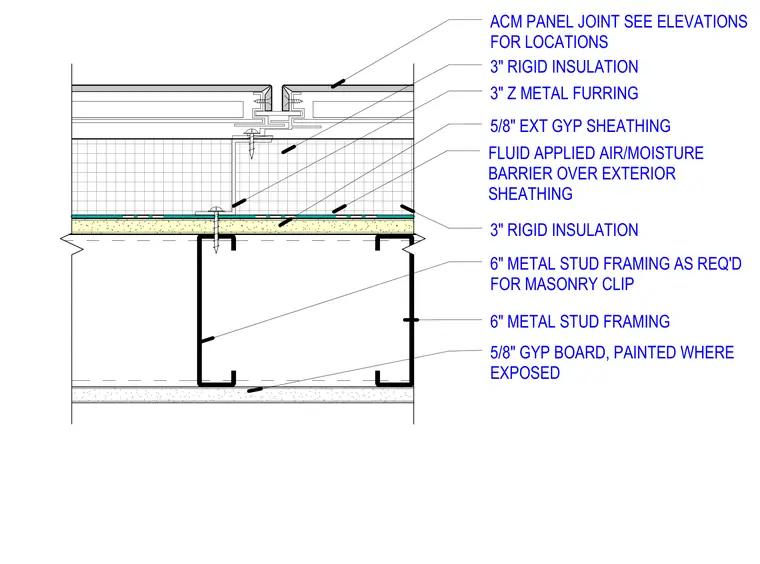

The exterior assembly consists of aluminum composite material panels attached at a vertical joint over three inches of rigid insulation and three inches of Z-metal furring. The furring is fastened through a fluid-applied air and moisture barrier over five-eighths-inch exterior gypsum sheathing. The primary backup structure uses six-inch metal stud framing as required for masonry clips. The interior side is finished with five-eighths-inch gypsum board, painted where exposed.
3" RIGID INSULATION FLUID APPLIED AIR/MOISTURE BARRIER OVER EXTERIOR SHEATHING 6" METAL STUD FRAMING 5/8" GYP BOARD, PAINTED WHERE EXPOSED 5/8" EXT GYP SHEATHING 6" METAL STUD FRAMING AS REQ'D FOR MASONRY CLIP ACM PANEL JOINT SEE ELEVATIONS FOR LOCATIONS 3" Z METAL FURRING 3" RIGID INSULATION
