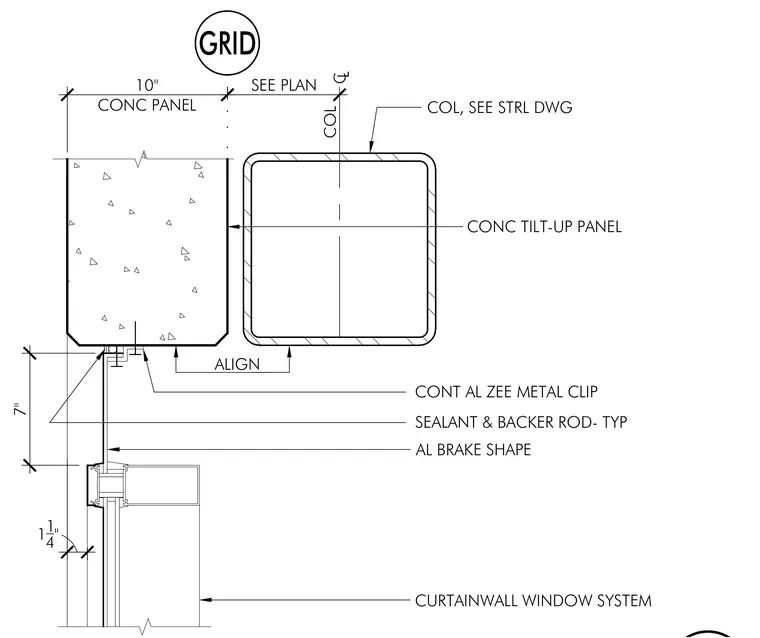

This architectural detail shows a curtainwall window system jamb intersecting with a ten-inch concrete tilt-up wall panel and a structural column. The curtainwall frame connects to the concrete panel using a continuous aluminum zee metal clip and an aluminum brake shape. A typical sealant and backer rod joint is provided at the perimeter interface. The concrete tilt-up panel aligns with the structural column located per structural drawings.
SEE PLAN GRID COL 11 4" 10" CONC PANEL SEALANT & BACKER ROD- TYP CURTAINWALL WINDOW SYSTEM COL, SEE STRL DWG C L CONC TILT-UP PANEL ALIGN AL BRAKE SHAPE CONT AL ZEE METAL CLIP 7"
