Architectural · A-S6Y6Z

Data Hall Partition and Security Mesh Detail

Materials

Elements

Columns Partitions Ceilings Floors / Slabs Waterproofing / Flashing Roof / Floor Openings

About this detail

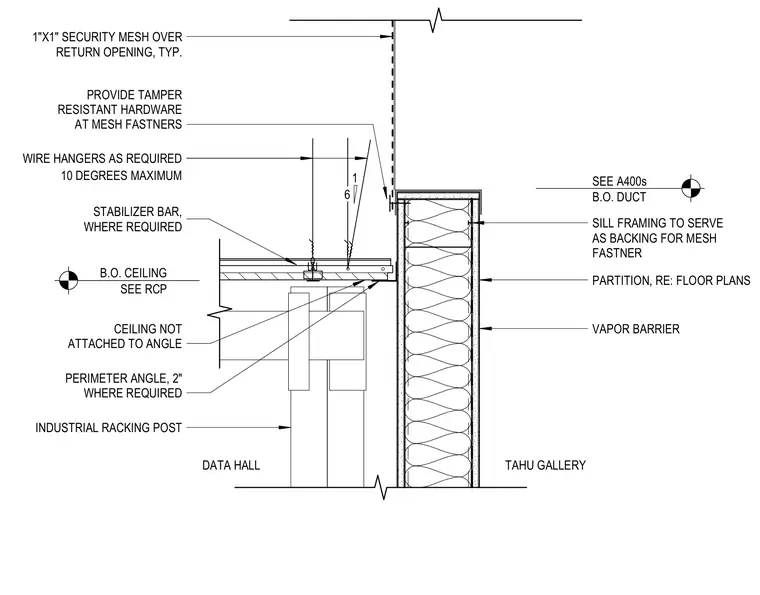

This wall and ceiling junction detail shows a partition separating a data hall from the Tahu Gallery. The assembly features an industrial racking post and sill framing acting as backing for mesh fasteners. A vapor barrier is applied to the partition, and tamper-resistant hardware secures a one-inch by one-inch security mesh over the return opening. The ceiling features a two-inch perimeter angle where required, with wire hangers installed at a maximum ten-degree angle. The ceiling rests unattached on the perimeter angle, and a stabilizer bar is included where required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
