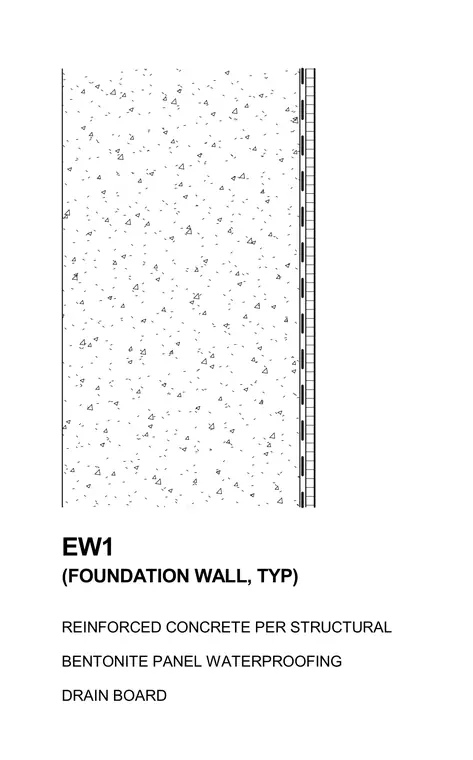

The detail illustrates a cast-in-place reinforced concrete foundation wall as specified by structural engineering requirements. The exterior face of the wall is protected by a bentonite panel waterproofing system combined with a drainage board to manage moisture and hydrostatic pressure against the foundation.
EW1 REINFORCED CONCRETE PER STRUCTURAL BENTONITE PANEL WATERPROOFING DRAIN BOARD (FOUNDATION WALL, TYP)
