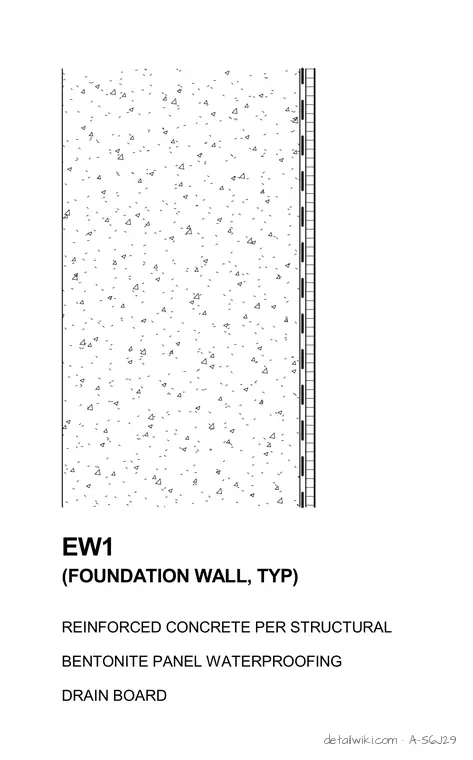

A-S6J29 — EW1

Architectural · A-S6J29

EW1

Units: metric
Sheet: A6.01
Discipline: Architectural

Materials

Concrete Reinforced Concrete

Elements

Drainage Foundations / Footings Reinforcing Walls Waterproofing / Flashing

Text on the drawing

EW1 REINFORCED CONCRETE PER STRUCTURAL BENTONITE PANEL WATERPROOFING DRAIN BOARD (FOUNDATION WALL, TYP)
