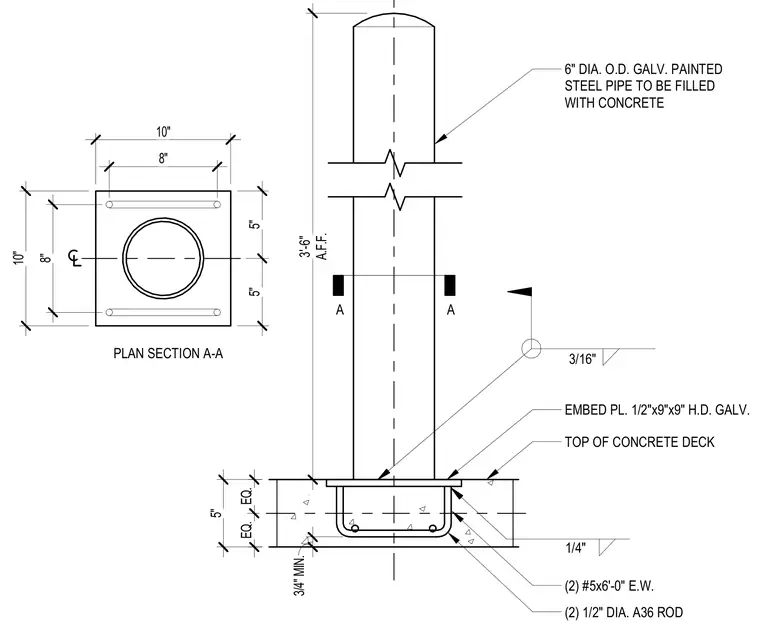

A six-inch outside diameter galvanized and painted steel pipe stands three feet six inches above the finished floor, filled completely with concrete. The pipe welds to a half-inch by nine-inch square hot-dip galvanized embed plate resting flush with the top of the concrete deck. Two half-inch diameter A36 anchor rods and two number five reinforcing bars at six feet zero inches each way reinforce the concrete slab below. A three-sixteenths inch fillet weld secures the pipe to the embed plate.
6" DIA. O.D. GALV. PAINTED STEEL PIPE TO BE FILLED WITH CONCRETE EMBED PL. 1/2"x9"x9" H.D. GALV. (2) 1/2" DIA. A36 ROD 1/4" (2) #5x6'-0" E.W. A A PLAN SECTION A-A TOP OF CONCRETE DECK 10" 10" 5" 5" 8" 8" A.F.F. 3'-6" 3/16" 5" EQ. EQ. 3/4" MIN.
