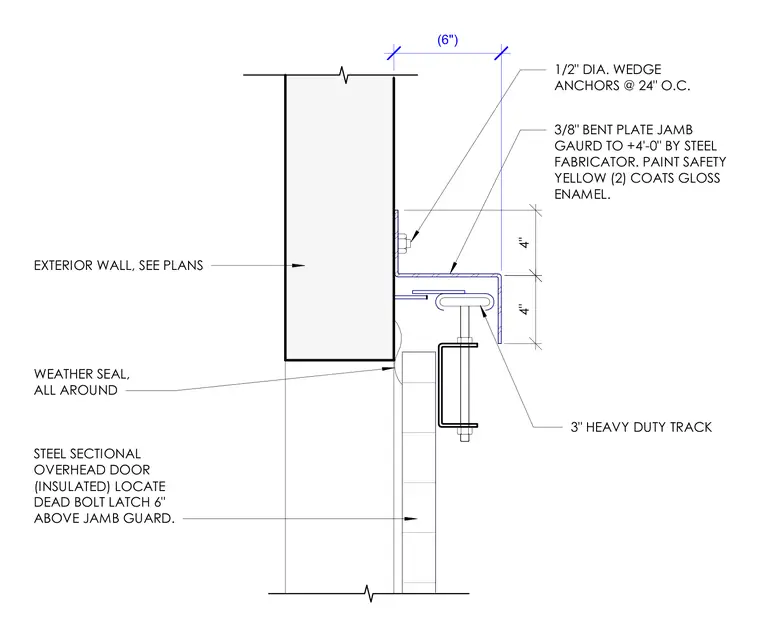

An insulated steel sectional overhead door tracks alongside a structural exterior wall with continuous weather sealing. A three-eighths-inch bent plate jamb guard extends to four feet above the finish floor and is secured to the wall using one-half-inch diameter wedge anchors spaced at twenty-four inches on center. The jamb guard is finished by the steel fabricator with two coats of safety yellow gloss enamel paint. A heavy-duty three-inch steel track supports the door mechanism, positioned adjacent to a dead bolt latch located six inches above the top of the jamb guard.
4" 4" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL OVERHEAD DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND EXTERIOR WALL, SEE PLANS (6")
