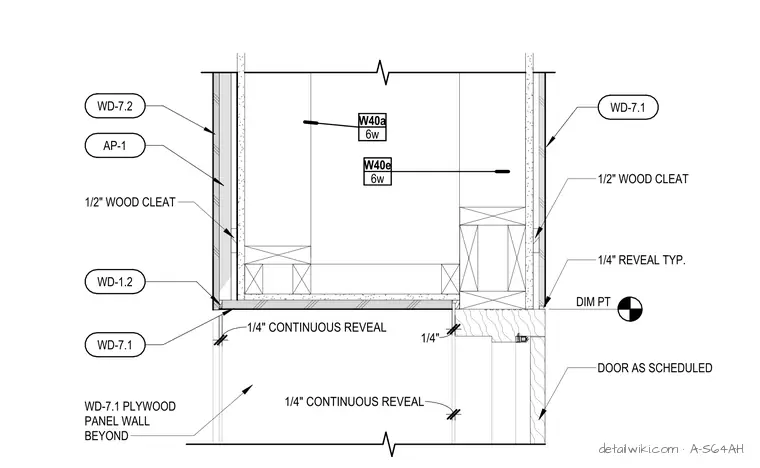

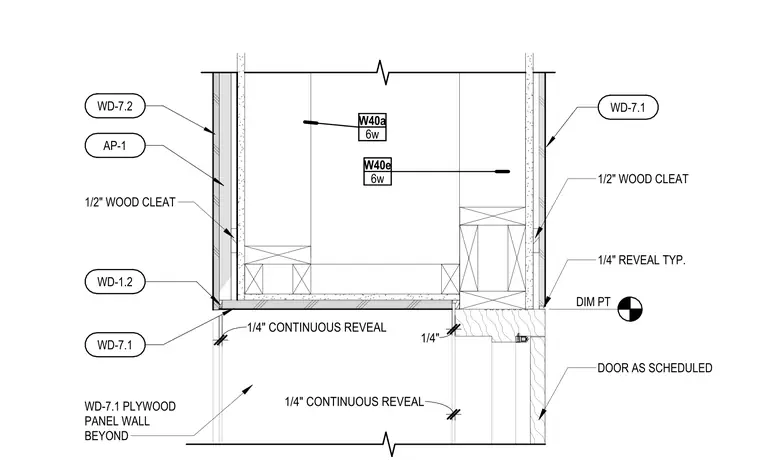

This door header assembly consists of wood framing members supporting plywood paneling on both sides of the wall. A one-half inch wood cleat is installed at the interior face of the wall framing to support the paneling. The assembly incorporates a one-quarter inch continuous reveal at the transition between the wall paneling and the door frame. The door itself is installed as scheduled, with a one-quarter inch reveal provided at the header interface. The wall finish is identified as WD-7.1 plywood paneling, with additional components labeled as WD-7.2 and AP-1.
