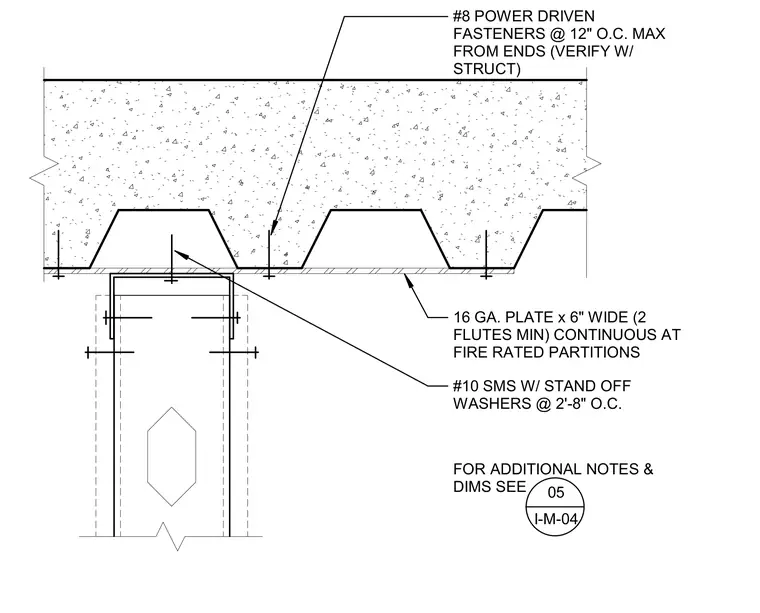

A metal stud framing track runs parallel beneath a concrete-filled metal deck and connects via sheet metal screws with standoff washers spaced at 2 feet 8 inches on center. A continuous 16-gauge plate spanning six inches wide and covering at least two flutes sits beneath the deck at fire-rated partitions, secured by number 8 power-driven fasteners at a maximum of 12 inches on center from the ends.
#8 POWER DRIVEN FASTENERS @ 12" O.C. MAX FROM ENDS (VERIFY W/ STRUCT) 16 GA. PLATE x 6" WIDE (2 FLUTES MIN) CONTINUOUS AT FIRE RATED PARTITIONS FOR ADDITIONAL NOTES & DIMS SEE 05 I-M-04 #10 SMS W/ STAND OFF WASHERS @ 2'-8" O.C.
