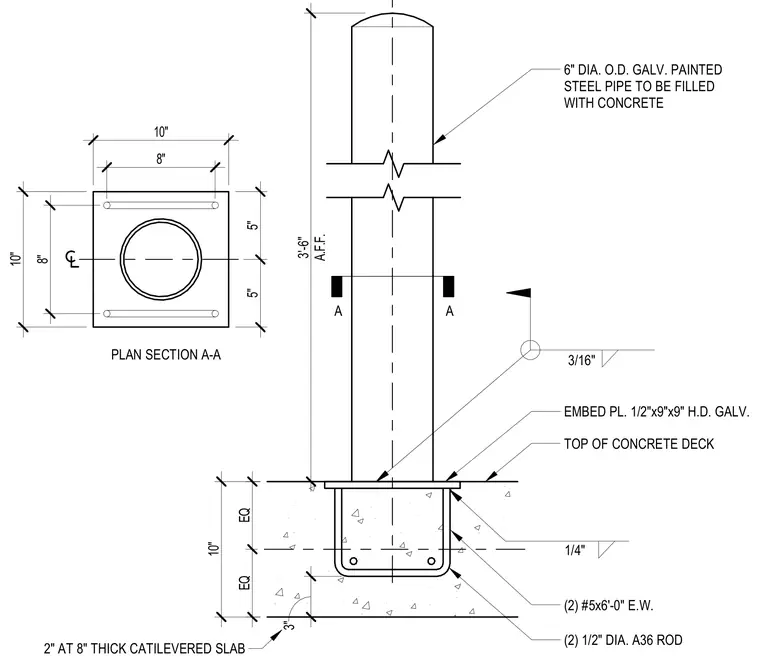

A six-inch diameter outer diameter galvanized painted steel pipe stands three feet six inches above finished floor, filled solidly with concrete. The pipe welds to a one-half inch by nine inch by nine inch hot-dip galvanized embed plate set flush with the top of the concrete deck. Two half-inch diameter ASTM A36 anchor rods extend downward into a ten-inch thick cantilevered slab reinforced with two number five bars at six feet zero inches each way. Fillet welds secure the steel assembly to the embedment.
6" DIA. O.D. GALV. PAINTED STEEL PIPE TO BE FILLED WITH CONCRETE EMBED PL. 1/2"x9"x9" H.D. GALV. (2) 1/2" DIA. A36 ROD 1/4" (2) #5x6'-0" E.W. A A PLAN SECTION A-A TOP OF CONCRETE DECK 10" 10" 5" 5" 8" 8" A.F.F. 3'-6" 3/16" 10" EQ EQ 3" 2" AT 8" THICK CATILEVERED SLAB
