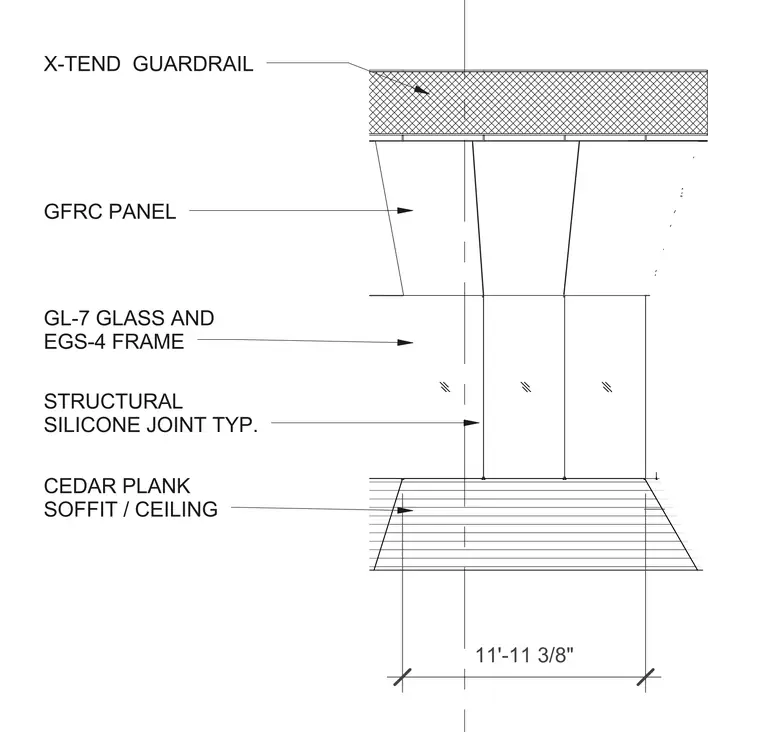

This assembly detail integrates an X-Tend guardrail above a glass fiber reinforced concrete panel and glazing system. The facade features GL-7 glass housed within an EGS-4 frame, sealed with typical structural silicone joints. Below the glazing, a cedar plank soffit and ceiling finish the underside of the assembly. A dimension of 11 feet 11 and 3/8 inches spans the structural bay width.
11'-11 3/8" GFRC PANEL GL-7 GLASS AND EGS-4 FRAME CEDAR PLANK SOFFIT / CEILING X-TEND GUARDRAIL STRUCTURAL SILICONE JOINT TYP.
