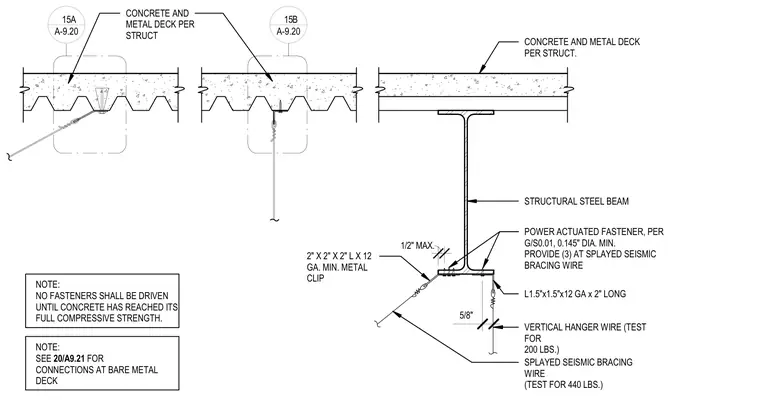

Vertical hanger wires and splayed seismic bracing wires anchor to concrete-filled metal deck and structural steel beams using power-actuated fasteners and steel angle clips. Splayed seismic bracing wires utilize three minimum 0.145-inch diameter power-actuated fasteners per connection, tested for four hundred forty pounds. Vertical hanger wires suspend from structural steel beams or metal clips with a maximum half-inch offset and require testing for two hundred pounds. Power-actuated fasteners must remain undriven until the concrete reaches its full compressive strength. Bare metal deck connections require coordination with detail twenty on sheet A9.21.
5/8" SPLAYED SEISMIC BRACING WIRE (TEST FOR 440 LBS.) VERTICAL HANGER WIRE (TEST FOR 200 LBS.) L1.5"x1.5"x12 GA x 2" LONG STRUCTURAL STEEL BEAM POWER ACTUATED FASTENER, PER G/S0.01, 0.145" DIA. MIN. PROVIDE (3) AT SPLAYED SEISMIC BRACING WIRE CONCRETE AND METAL DECK PER STRUCT CONCRETE AND METAL DECK PER STRUCT. NOTE: NO FASTENERS SHALL BE DRIVEN UNTIL CONCRETE HAS REACHED ITS FULL COMPRESSIVE STRENGTH. A-9.20 15 A-9.20 15 A B NOTE: SEE 20/A9.21 FOR CONNECTIONS AT BARE METAL DECK 1/2" MAX. 2" X 2" X 2" L X 12 GA. MIN. METAL CLIP
