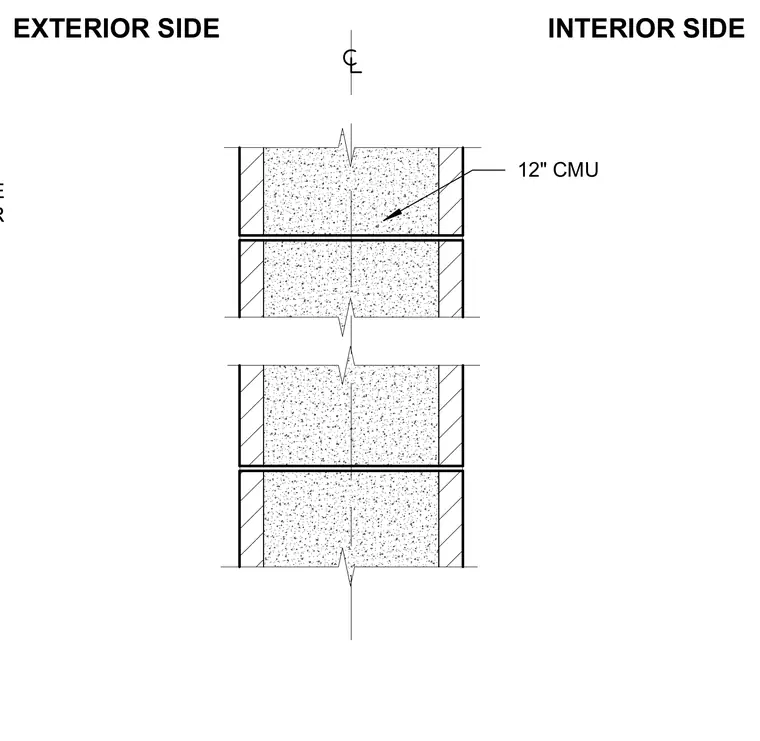

A twelve-inch concrete masonry unit wall is oriented with designated interior and exterior sides and a central alignment axis. Framing dimensions and structural coordination refer to the structural drawings.
INTERIOR SIDE EXTERIOR SIDE 12" CMU 6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR
