An aluminum door threshold sets over the finish floor adjacent to an expansion filler at the slab edge. A stainless steel flashing, set in compatible sealant over a self-adhered sheet membrane, extends down eighteen inches from the top of the slab to provide continuous waterproofing. The aluminum door and curtain wall system integrate with adjacent jamb flanges, requiring all joints to be lapped and sealed.

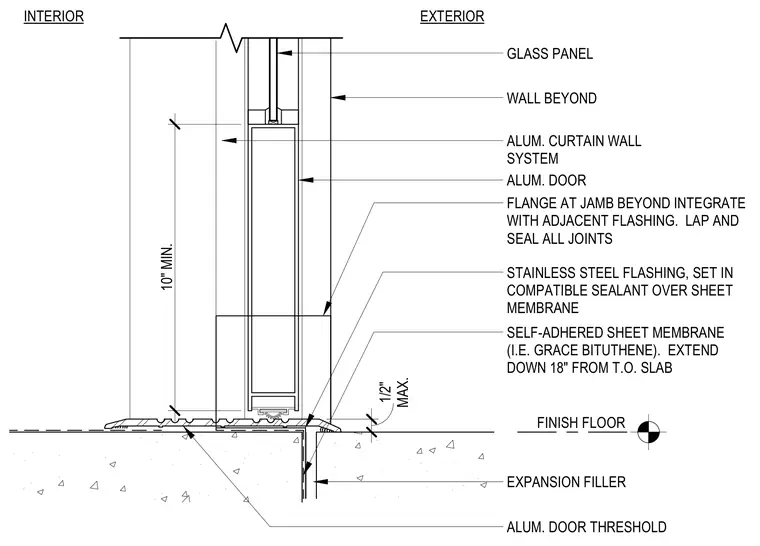

ALUM. CURTAIN WALL SYSTEM ALUM. DOOR FLANGE AT JAMB BEYOND INTEGRATE WITH ADJACENT FLASHING. LAP AND SEAL ALL JOINTS FINISH FLOOR GLASS PANEL INTERIOR EXTERIOR WALL BEYOND 10" MIN. MAX. 1/2" STAINLESS STEEL FLASHING, SET IN COMPATIBLE SEALANT OVER SHEET MEMBRANE SELF-ADHERED SHEET MEMBRANE (I.E. GRACE BITUTHENE). EXTEND DOWN 18" FROM T.O. SLAB EXPANSION FILLER ALUM. DOOR THRESHOLD
