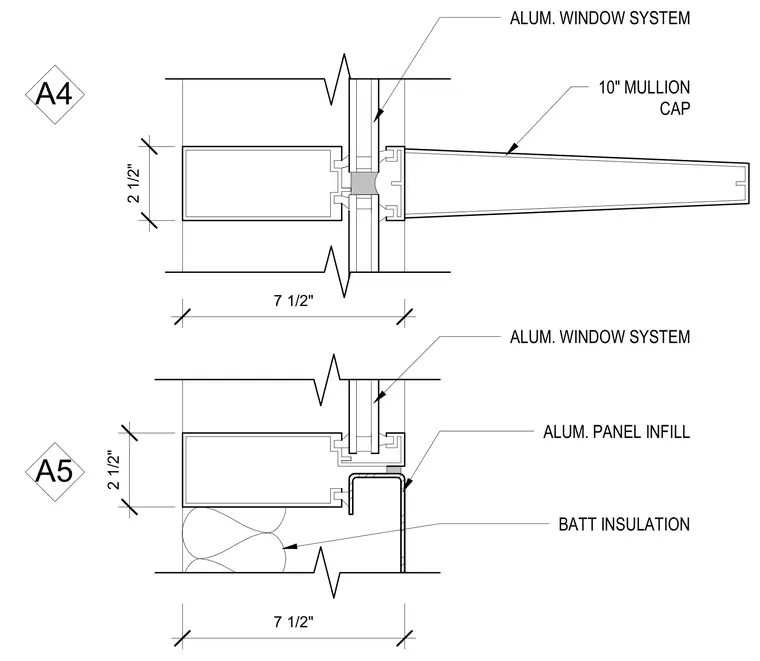

An aluminum window system features a vertical mullion profile measuring seven and one-half inches deep by two and one-half inches wide. The exterior side receives a ten-inch projecting mullion cap. The interior assembly incorporates an aluminum panel infill backed by batt insulation within the wall cavity.
A4 7 1/2" 2 1/2" A5 ALUM. WINDOW SYSTEM ALUM. PANEL INFILL BATT INSULATION ALUM. WINDOW SYSTEM 10" MULLION CAP 7 1/2" 2 1/2"
