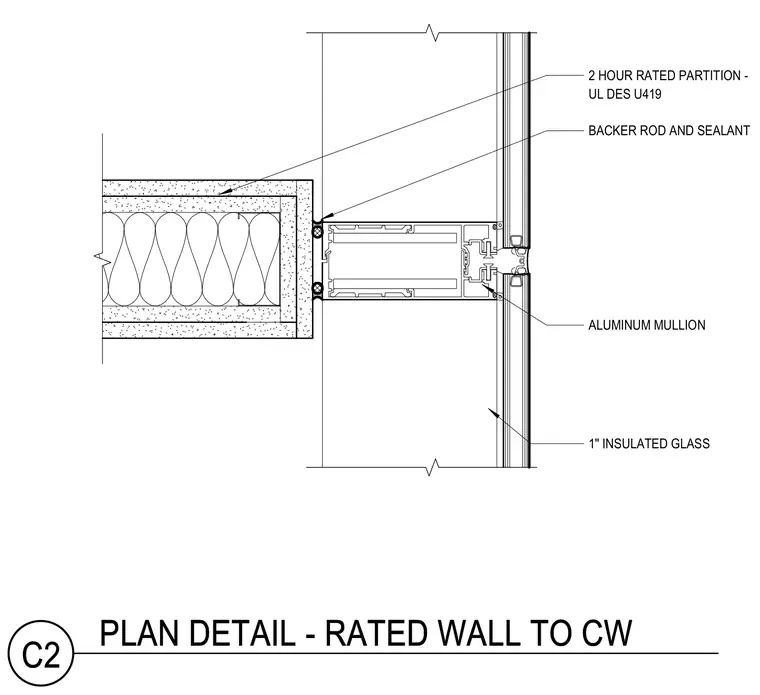

A two-hour rated partition built to Underwriters Laboratories design U419 terminates at an aluminum curtain wall mullion. The joint between the partition end and the aluminum framing is sealed with a backer rod and sealant. The curtain wall assembly incorporates one-inch insulated glass units.
2 HOUR RATED PARTITION - UL DES U419 1" INSULATED GLASS ALUMINUM MULLION BACKER ROD AND SEALANT C2 PLAN DETAIL - RATED WALL TO CW
