Architectural · A-S4WPP

Center Opening at Steel Column

Materials

Elements

About this detail

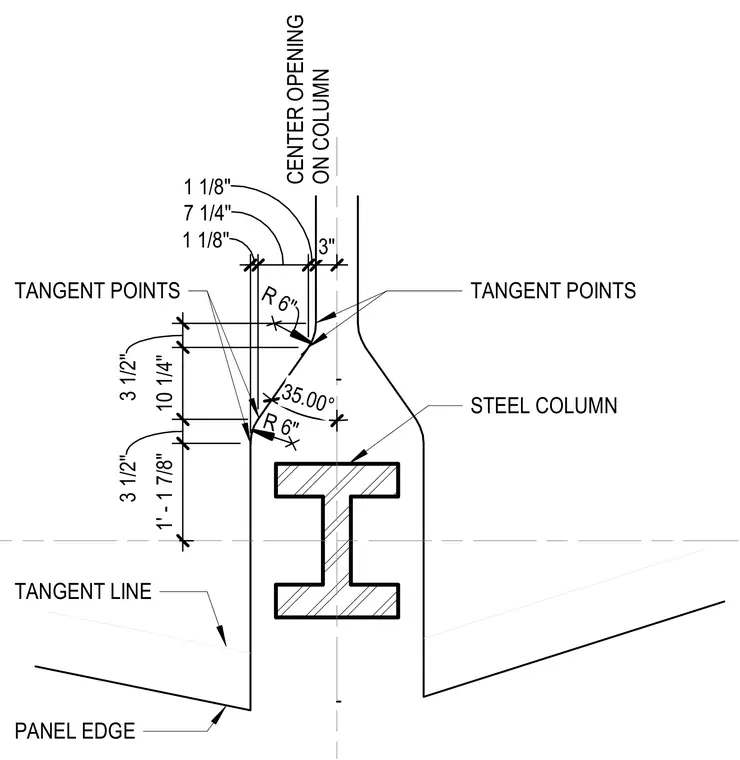

A center opening aligns symmetrically with a steel column flanked by panel edges. The layout features specified tangent points, tangent lines, and 6-inch radii with a 35-degree angle. Vertical dimensions define the spacing at 1 foot 1-7/8 inches, 3-1/2 inches, 10-1/4 inches, and 3-1/2 inches, alongside horizontal dimensions of 3 inches, 1-1/8 inches, 7-1/4 inches, and 1-1/8 inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
