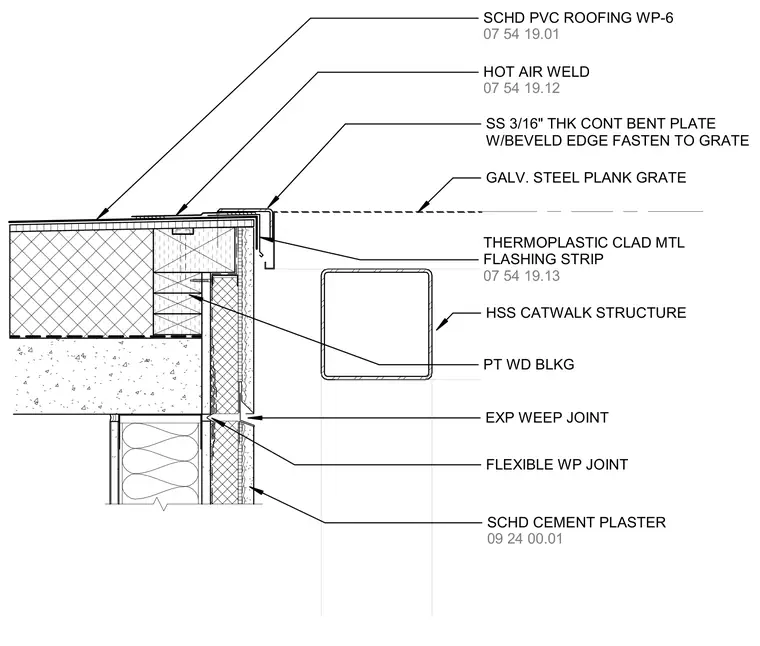

A galvanized steel plank grate is fastened to a three-sixteenth-inch thick continuous stainless steel bent plate with a beveled edge, which anchors to pressure-treated wood blocking at the roof well curb. A thermoplastic clad metal flashing strip and schedule PVC roofing membrane apply over the curb and are secured with a hot air weld. The vertical curb surface receives a schedule cement plaster finish over an expansion weep joint and a flexible waterproofing joint. A hollow structural section catwalk structure runs adjacent to the curb assembly.
GALV. STEEL PLANK GRATE HSS CATWALK STRUCTURE EXP WEEP JOINT 07 54 19.01 SCHD PVC ROOFING WP-6 07 54 19.13 THERMOPLASTIC CLAD MTL FLASHING STRIP FLEXIBLE WP JOINT 09 24 00.01 SCHD CEMENT PLASTER 07 54 19.12 HOT AIR WELD PT WD BLKG SS 3/16" THK CONT BENT PLATE W/BEVELD EDGE FASTEN TO GRATE
