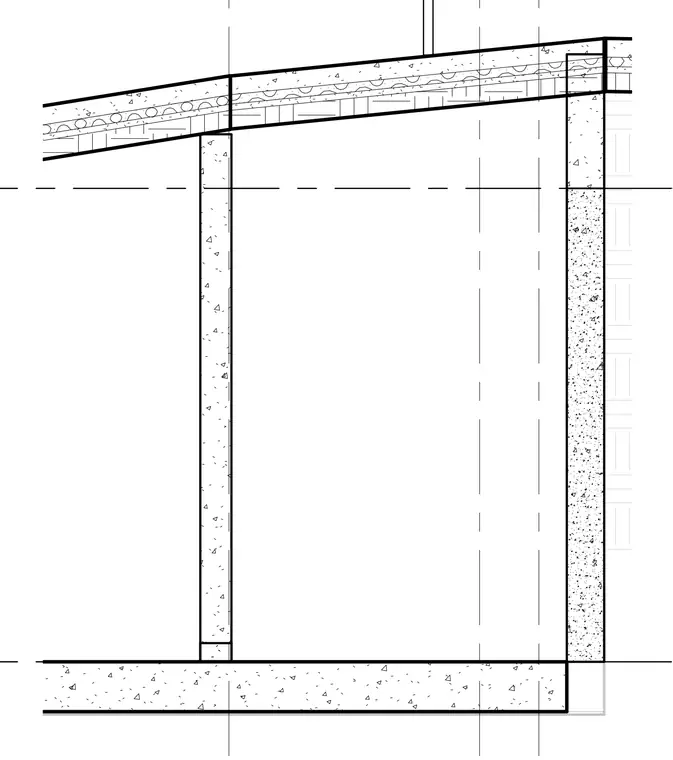

This building section details a sloped roof structure bearing on masonry and concrete wall assemblies. The assembly comprises a concrete slab-on-grade foundation, vertical concrete masonry unit or concrete walls, and a sloped roof deck with concrete fill and insulation layers. Continuous grid and alignment reference lines cross the section to establish structural and spatial coordination.
