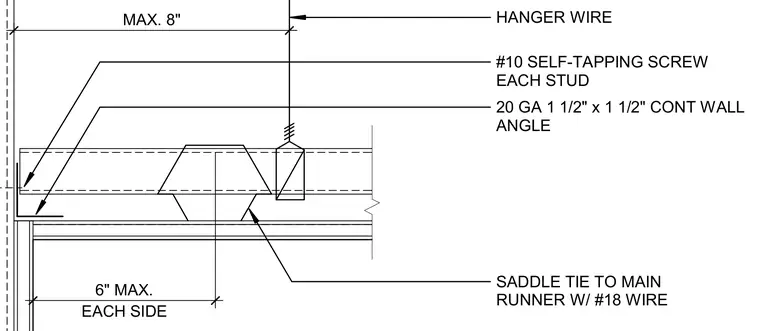

A continuous twenty-gauge one-and-one-half-inch by one-and-one-half-inch wall angle supports the ceiling framing at the perimeter wall and is secured with number ten self-tapping screws at each stud. Main runners are suspended using hanger wires spaced a maximum of eight inches from the wall. The main runner is further stabilized with a saddle tie attached using number eighteen wire, positioned a maximum of six inches on each side.
MAX. 8" EACH SIDE 6" MAX. HANGER WIRE #10 SELF-TAPPING SCREW EACH STUD SADDLE TIE TO MAIN RUNNER W/ #18 WIRE 20 GA 1 1/2" x 1 1/2" CONT WALL ANGLE
