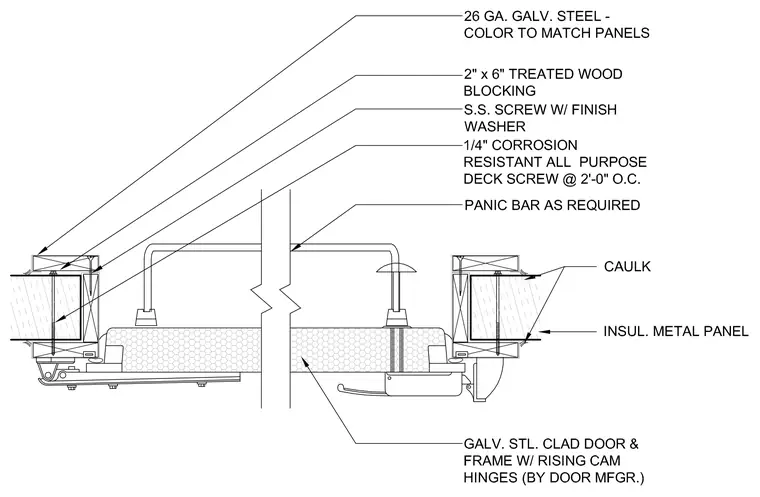

An insulated metal panel door jamb features a galvanized steel clad door and frame with rising cam hinges supported by two-by-six treated wood blocking. Stainless steel screws with finish washers and one-quarter inch corrosion resistant all-purpose deck screws spaced at two feet on center secure the components. A twenty-six gauge galvanized steel trim piece matches the panel color. Caulk seals the interface between the insulated metal panel and the jamb assembly, and a panic bar is installed as required.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
