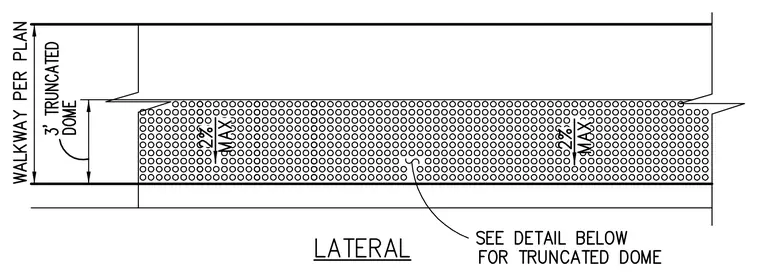

Detectable warning surface consisting of a three-foot truncated dome pattern installed within a walkway per plan. The surface includes a maximum two percent slope indicator and a reference note pointing to a detail below for the truncated dome installation. Lateral boundaries and dimensions define the extent of the truncated dome strip.
