Architectural · A-S3JMC

Granite Curb

Units: metric
Discipline: Architectural

Materials

Elements

About this detail

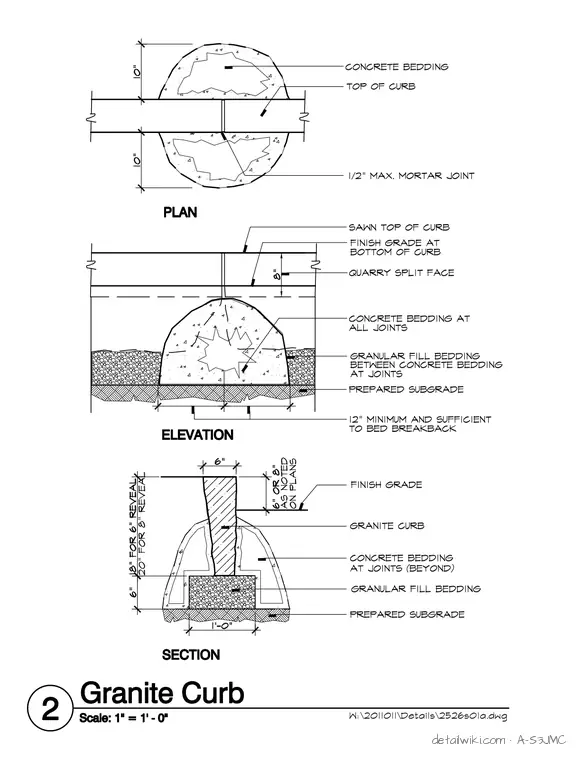

The detail illustrates the construction assembly for a granite curb, featuring a sawn top and quarry split face, set upon concrete bedding at joints with granular fill bedding in between. A prepared subgrade supports the entire assembly, and specific dimensions are provided for reveals, mortar joints, and bed breakback. The drawing includes a plan view showing a 1/2" max mortar joint, an elevation view detailing joint construction, and a cross-section showing vertical dimensions and finish grade relationships.
