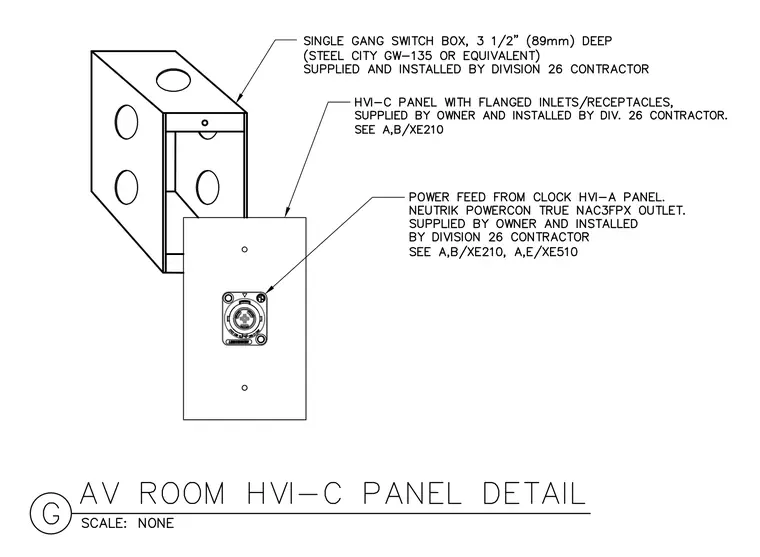

An HVI-C panel with flanged inlets and receptacles is mounted over a single gang switch box that is three and one-half inches deep, such as a Steel City GW-135 or equivalent. A power feed from the clock HVI-A panel connects via a Neutrik powerCON TRUE NAC3FPX outlet. All components are supplied by the owner or Division 26 contractor and installed per associated electrical drawings.
