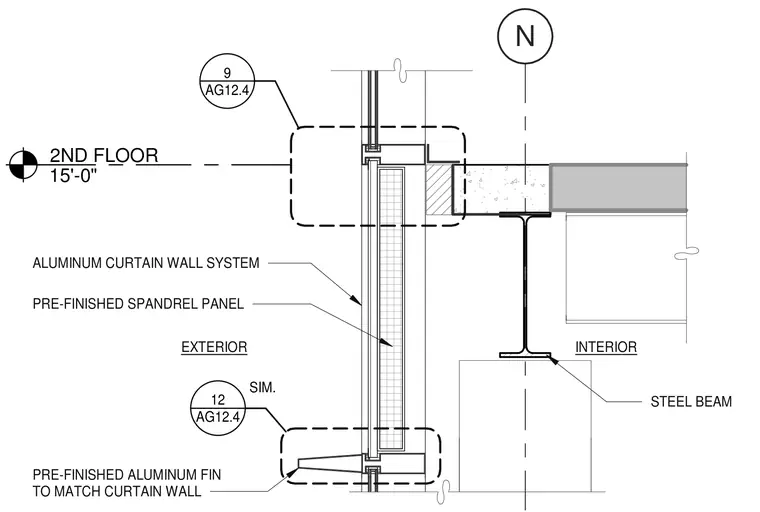

An aluminum curtain wall system is aligned with the exterior edge of the building at the second floor elevation of 15'-0". A pre-finished spandrel panel is integrated within the curtain wall framing alongside vision glass. A pre-finished aluminum fin matching the curtain wall finish projects outward from the lower frame. The curtain wall meets the floor assembly adjacent to a steel beam supporting the concrete slab.
N 2ND FLOOR 15'-0" INTERIOR EXTERIOR AG12.4 12 SIM. AG12.4 9 PRE-FINISHED ALUMINUM FIN TO MATCH CURTAIN WALL PRE-FINISHED SPANDREL PANEL ALUMINUM CURTAIN WALL SYSTEM STEEL BEAM
