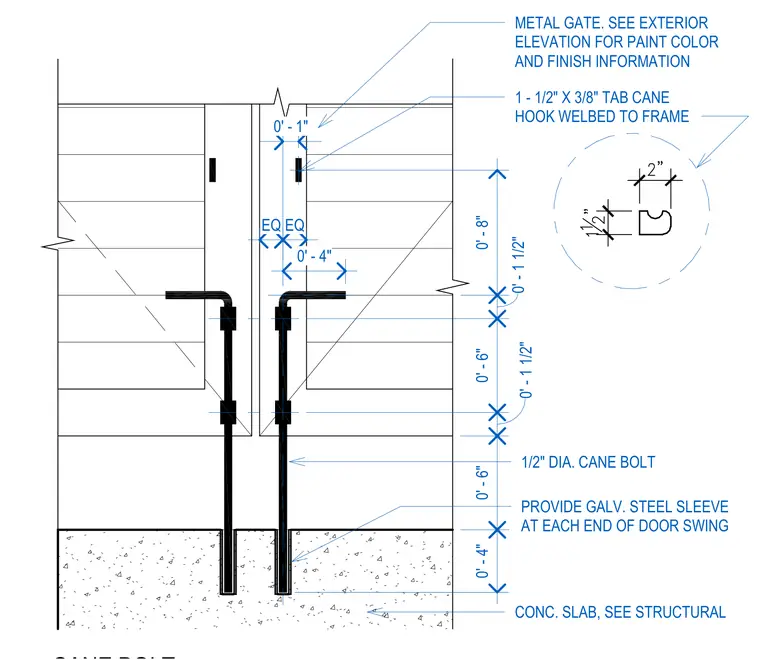

A half-inch diameter cane bolt drops into a galvanized steel sleeve embedded in the concrete slab at the door swing. A one-and-a-half-inch by three-eighths-inch tab cane hook is welded to the metal gate frame. The gate requires exterior finish and paint per elevation.
EQ EQ 0' - 4" 0' - 1" 0' - 4" 0' - 6" 0' - 1 1/2" 0' - 6" 0' - 1 1/2" 0' - 8" METAL GATE. SEE EXTERIOR ELEVATION FOR PAINT COLOR AND FINISH INFORMATION 1 - 1/2" X 3/8" TAB CANE HOOK WELBED TO FRAME 1/2" DIA. CANE BOLT PROVIDE GALV. STEEL SLEEVE AT EACH END OF DOOR SWING CONC. SLAB, SEE STRUCTURAL 3" = 1'-0"
