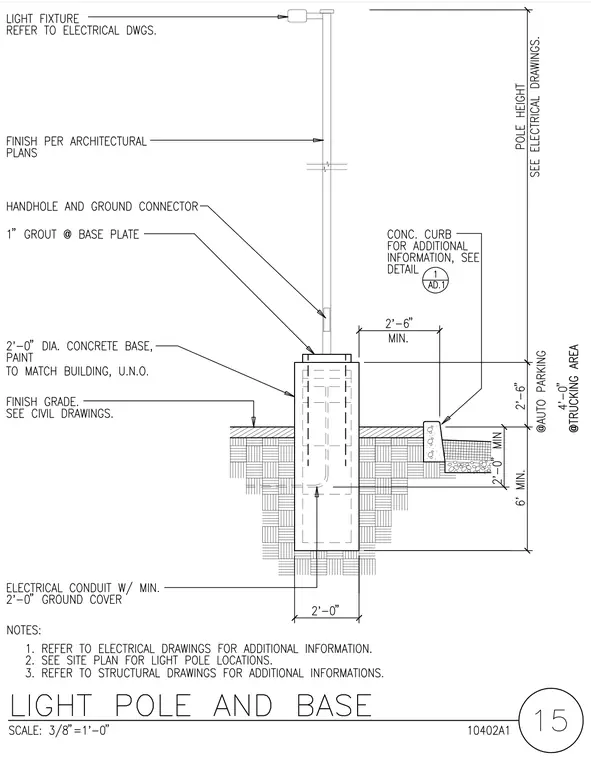

An exterior site lighting assembly anchored to a two-foot diameter concrete base set into the ground with six feet of minimum depth. A one-inch grout layer sits beneath the base plate of the pole. An electrical conduit enters the bottom of the concrete pier with a minimum two-foot ground cover. A concrete curb is positioned adjacent to the base with varying heights for auto parking and trucking areas.
