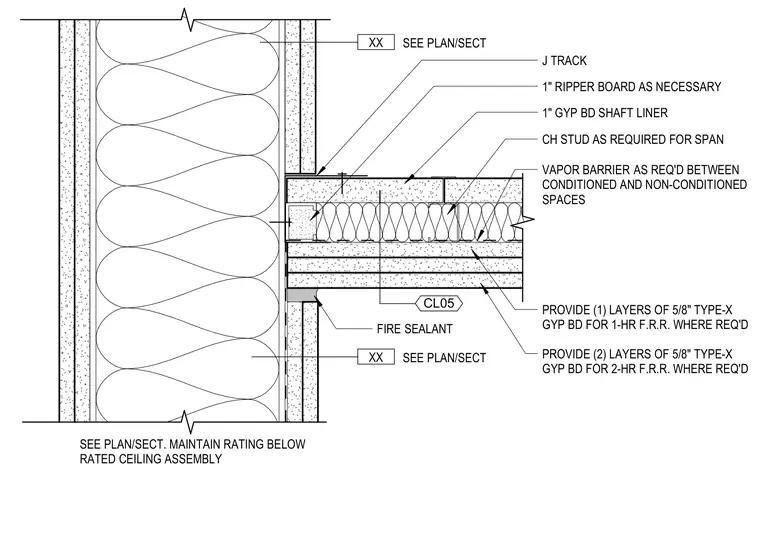

The transition between a rated wall and a rated ceiling assembly uses CH studs sized as required for the span and J-track framing. A one-inch gypsum board shaft liner is installed alongside a one-inch ripper board as necessary. A vapor barrier is provided between conditioned and non-conditioned spaces where required. Layers of five-eighths inch Type-X gypsum board are applied to achieve the required fire-resistance rating, using one layer for one-hour fire-resistance ratings and two layers for two-hour fire-resistance ratings. Fire sealant is applied at the joints, and ratings are maintained below the rated ceiling assembly.
CH STUD AS REQUIRED FOR SPAN J TRACK VAPOR BARRIER AS REQ'D BETWEEN CONDITIONED AND NON-CONDITIONED SPACES SEE PLAN/SECT XX 1" GYP BD SHAFT LINER FIRE SEALANT SEE PLAN/SECT. MAINTAIN RATING BELOW RATED CEILING ASSEMBLY 1" RIPPER BOARD AS NECESSARY SEE PLAN/SECT XX PROVIDE (1) LAYERS OF 5/8" TYPE-X GYP BD FOR 1-HR F.R.R. WHERE REQ'D PROVIDE (2) LAYERS OF 5/8" TYPE-X GYP BD FOR 2-HR F.R.R. WHERE REQ'D CL05
