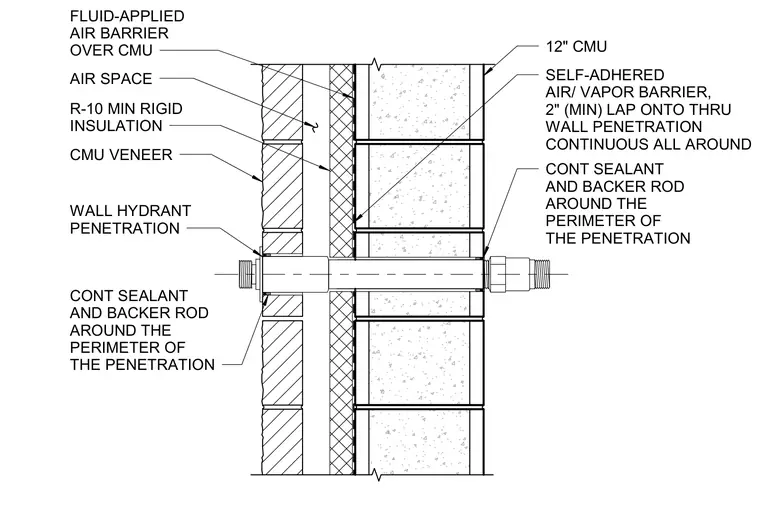

A wall hydrant penetrates a twelve-inch concrete masonry unit backup wall, exterior rigid insulation, air space, and concrete masonry unit veneer. A self-adhered air and vapor barrier laps a minimum of two inches onto the through-wall penetration continuously around its perimeter. Continuous sealant and backer rod seal the perimeter of the penetration at both the exterior veneer and interior backup wall faces.
CMU VENEER AIR SPACE R-10 MIN RIGID INSULATION FLUID-APPLIED AIR BARRIER OVER CMU 12" CMU WALL HYDRANT PENETRATION SELF-ADHERED AIR/ VAPOR BARRIER, 2" (MIN) LAP ONTO THRU WALL PENETRATION CONTINUOUS ALL AROUND CONT SEALANT AND BACKER ROD AROUND THE PERIMETER OF THE PENETRATION CONT SEALANT AND BACKER ROD AROUND THE PERIMETER OF THE PENETRATION
