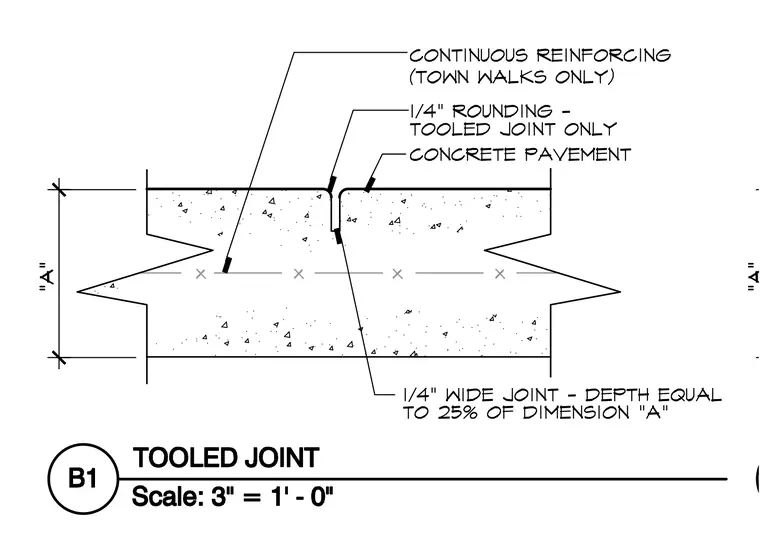

A tooled joint in concrete pavement features a one-quarter-inch rounding specifically for tooled joints. The joint width is one-quarter inch, with a depth equal to twenty-five percent of dimension A, representing the slab thickness. Continuous reinforcing is included for town walks only. The concrete pavement is detailed with dimensioned thickness A.
