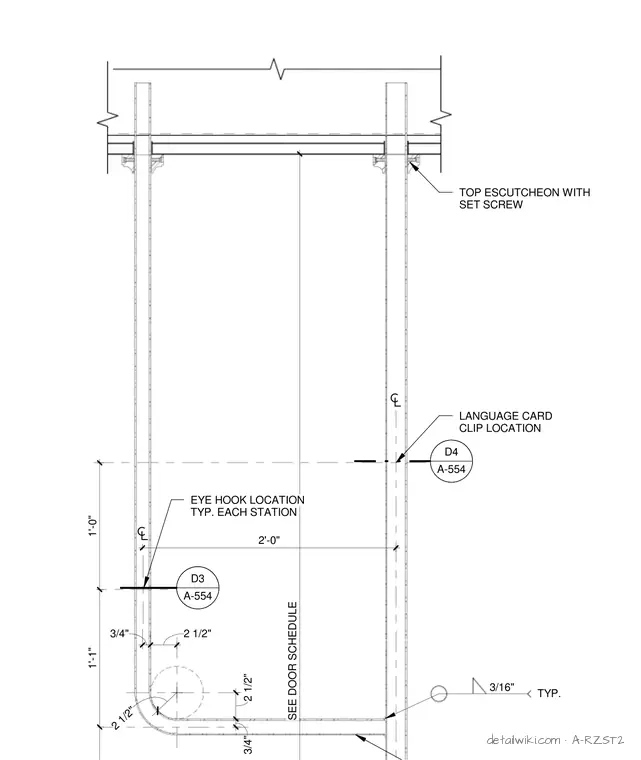

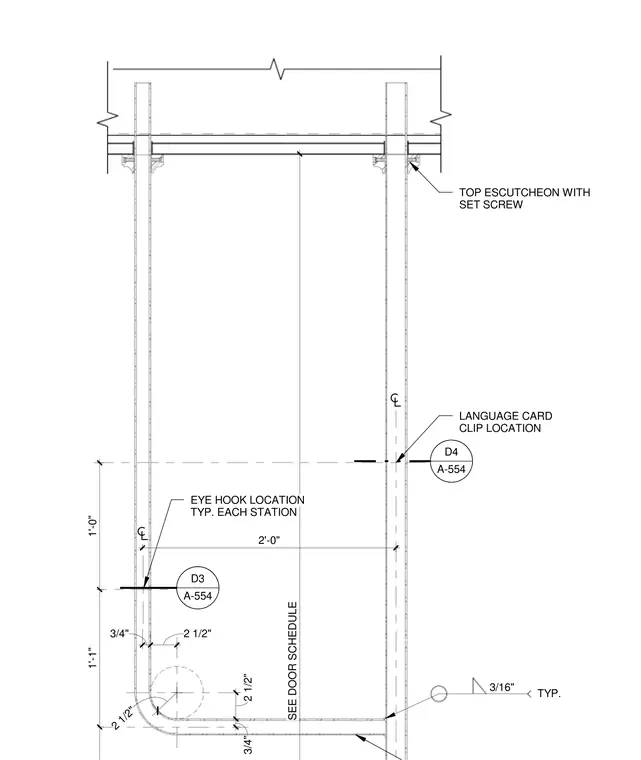

This veil frame assembly features vertical support posts secured with a top escutcheon equipped with a set screw. Specific locations are designated for language card clips and eye hooks at typical stations along the frame. Dimensions include a 2'-0" span, 1'-0" height increment, and 1'-1" base clearance with 2 1/2" and 3/4" spacing offsets. Typical 3/16" welds are specified throughout the frame connections. The assembly is coordinated with the door schedule and references details D3 and D4 on sheet A-554.
SEE DOOR SCHEDULE 2 1/2" D3 A-554 D4 A-554 2 1/2" 3/4" 3/16" TYP. TOP ESCUTCHEON WITH SET SCREW EYE HOOK LOCATION TYP. EACH STATION LANGUAGE CARD CLIP LOCATION 2'-0" 2 1/2" 3/4" 1'-0" 1'-1"
