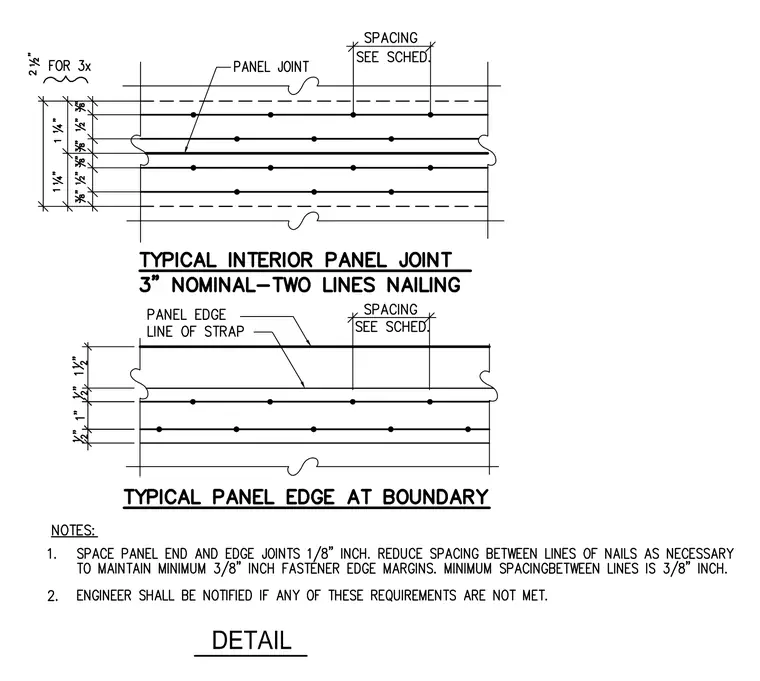

Two distinct panel fastening details provide nail spacing and edge distances for wood or sheathing panels. The upper detail shows a typical interior panel joint for a three-inch nominal member with two lines of nailing, featuring panel joints, fastener spacing per schedule, and precise vertical edge dimensions of one and one-quarter inches, three-eighths inch, and one-half inch margins. The lower detail shows a typical panel edge at a boundary with a line of strap, panel edge indication, and dimensioned nail spacing. Accompanying notes specify that panel end and edge joints must be spaced one-eighth inch, with nail spacing reduced as necessary to maintain minimum three-eighths inch fastener edge margins and a minimum spacing of three-eighths inch between lines of nails, requiring engineer notification if requirements are not met.
