A continuous 22-gauge minimum 3-inch deep-leg deflection track attaches to the fluted steel deck at a maximum of 12 inches on center. Gypsum board and studs are left unattached to the deflection track within this area to allow vertical movement. A continuous 2-inch wide by 22-gauge metal strap provides top attachment for the gypsum board. A continuous 20-gauge galvanized metal strap runs across the metal deck flutes. When the partition aligns at a deck flute recess, a 6-inch by 10-inch by 22-gauge metal plate attaches to the deck with powder-driven fasteners at the same spacing required for the partition top track. One side of the partition is sealed against the passage of smoke.

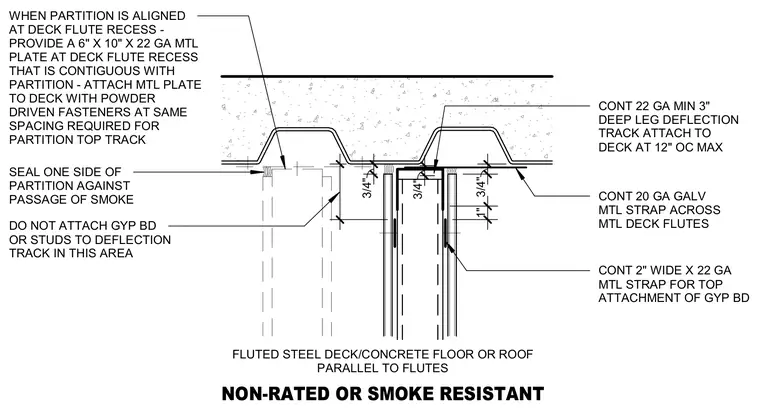

1" 4 7/64" NON-RATED OR SMOKE RESISTANT FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PARALLEL TO FLUTES CONT 2" WIDE X 22 GA MTL STRAP FOR TOP ATTACHMENT OF GYP BD CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA SEAL ONE SIDE OF PARTITION AGAINST PASSAGE OF SMOKE WHEN PARTITION IS ALIGNED AT DECK FLUTE RECESS - PROVIDE A 6" X 10" X 22 GA MTL PLATE AT DECK FLUTE RECESS THAT IS CONTIGUOUS WITH PARTITION - ATTACH MTL PLATE TO DECK WITH POWDER DRIVEN FASTENERS AT SAME SPACING REQUIRED FOR PARTITION TOP TRACK 3/4" 3/4" CONT 20 GA GALV MTL STRAP ACROSS MTL DECK FLUTES 3/4"
