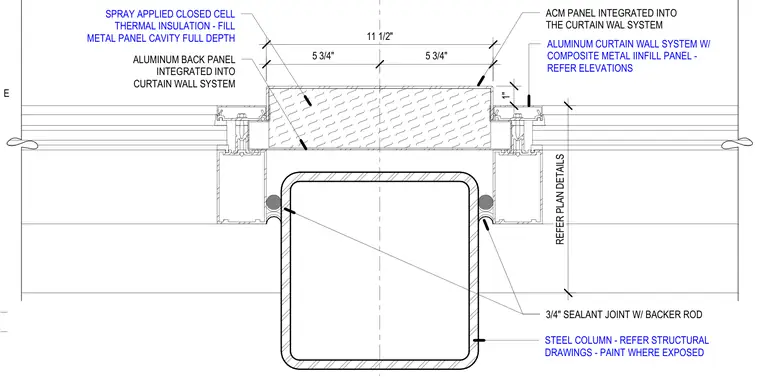

An aluminum curtain wall system with a composite metal infill panel connects to a structural steel column. The steel column is painted where exposed and coordinates with structural drawings. An aluminum back panel integrates into the curtain wall system, backed by spray-applied closed-cell thermal insulation filling the metal panel cavity full depth. An aluminum composite material panel is integrated into the curtain wall system at the exterior face. Three-quarter-inch sealant joints with backer rods seal the interfaces at the column edges.
STEEL COLUMN - REFER STRUCTURAL DRAWINGS - PAINT WHERE EXPOSED 3/4" SEALANT JOINT W/ BACKER ROD REFER PLAN DETAILS ALUMINUM CURTAIN WALL SYSTEM W/ COMPOSITE METAL IINFILL PANEL - REFER ELEVATIONS ALUMINUM BACK PANEL INTEGRATED INTO CURTAIN WALL SYSTEM SPRAY APPLIED CLOSED CELL THERMAL INSULATION - FILL METAL PANEL CAVITY FULL DEPTH ACM PANEL INTEGRATED INTO THE CURTAIN WAL SYSTEM 1" 5 3/4" 5 3/4" 11 1/2" E
