A perimeter furring assembly constructed with three-and-five-eighths-inch metal studs extends six inches above the ceiling line. The framing is filled with R-13 batt insulation and faced with an FSK-25 vapor barrier on the warm side. The interior finish consists of five-eighths-inch gypsum board, specified as water-resistant at wet walls and carried up to six inches above the ceiling. The assembly abuts a fully conditioned exterior wall.

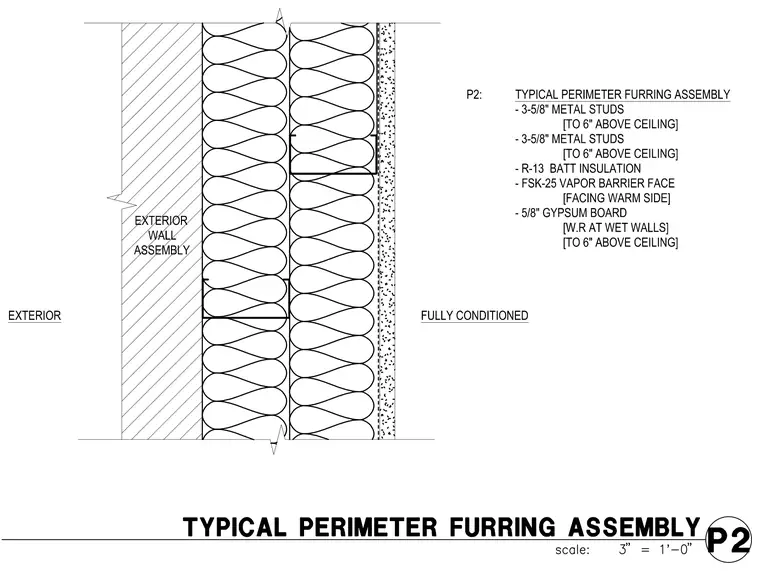

EXTERIOR P2: TYPICAL PERIMETER FURRING ASSEMBLY - 3-5/8" METAL STUDS [TO 6" ABOVE CEILING] - 3-5/8" METAL STUDS [TO 6" ABOVE CEILING] - R-13 BATT INSULATION - FSK-25 VAPOR BARRIER FACE [FACING WARM SIDE] - 5/8" GYPSUM BOARD [W.R AT WET WALLS] [TO 6" ABOVE CEILING] FULLY CONDITIONED EXTERIOR WALL ASSEMBLY
