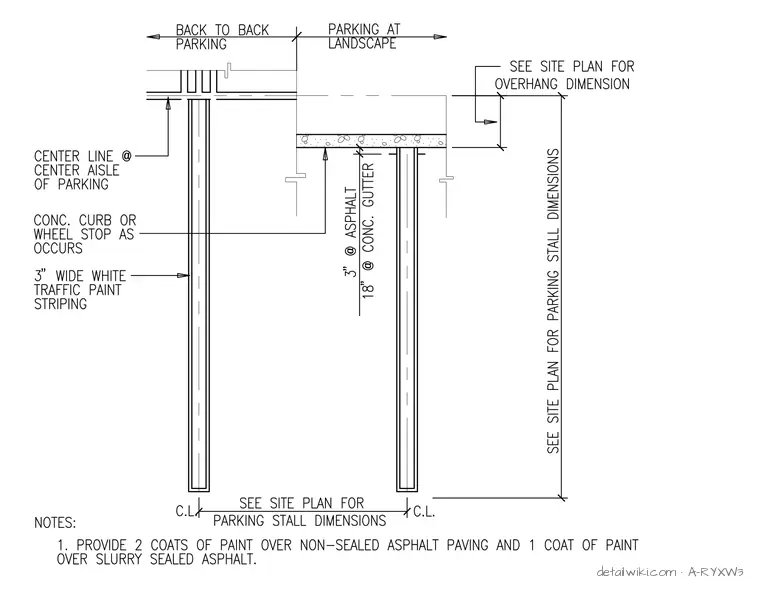

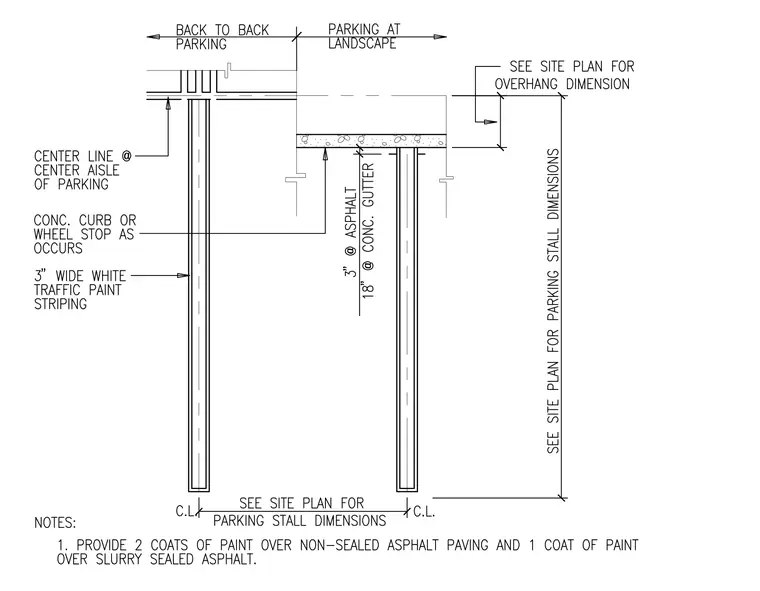

Parking stall striping layout and transition to concrete curbing or wheel stops. Three-inch wide white traffic paint striping centers on the parking aisle. The concrete gutter measures eighteen inches wide, adjacent to three inches of asphalt paving. Site plan governs specific parking stall dimensions and vehicle overhang clearances. Two coats of paint are required over non-sealed asphalt paving; one coat is required over slurry-sealed asphalt.
