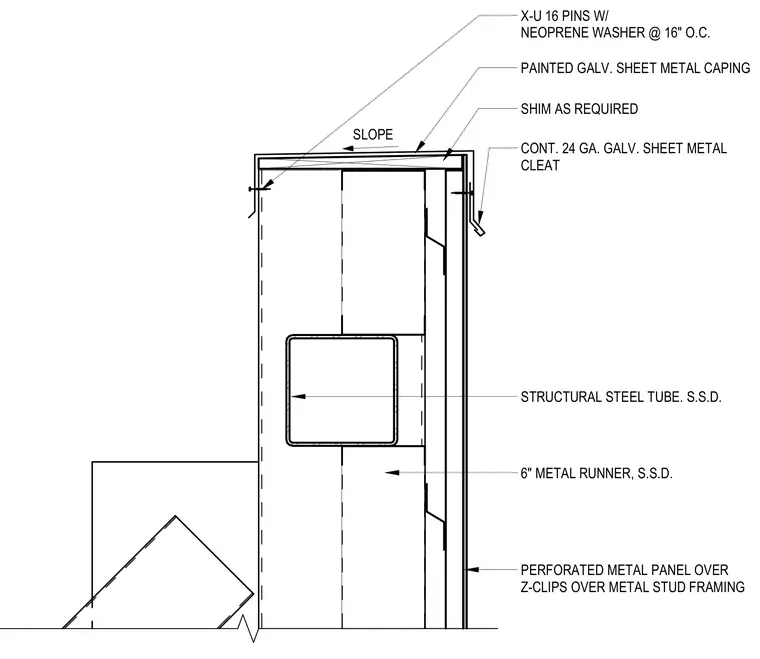

A painted galvanized sheet metal coping caps the top of a roof screen wall over a sloped shim and a structural steel tube. A continuous twenty-four gauge galvanized sheet metal cleat secures the outer edge of the coping. X-U sixteen pins with neoprene washers spaced at sixteen inches on center fasten the assembly. Perforated metal panels are installed over Z-clips and metal stud framing below the coping.
6" METAL RUNNER, S.S.D. PAINTED GALV. SHEET METAL CAPING SHIM AS REQUIRED CONT. 24 GA. GALV. SHEET METAL CLEAT X-U 16 PINS W/ NEOPRENE WASHER @ 16" O.C. STRUCTURAL STEEL TUBE. S.S.D. PERFORATED METAL PANEL OVER Z-CLIPS OVER METAL STUD FRAMING SLOPE
