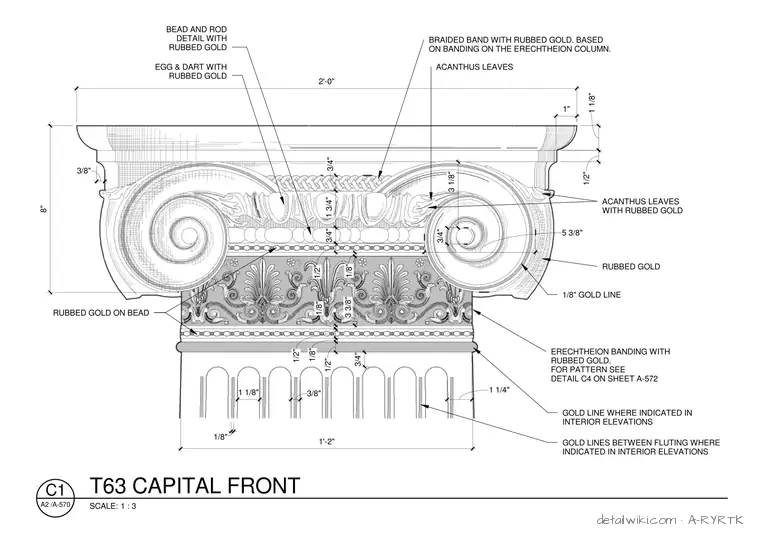

This elevation details a classical column capital featuring a two-foot-wide abacus and decorative enrichments including egg and dart molding, bead and rod details, and carved acanthus leaves with rubbed gold finishes. The capital incorporates banded ornamentation based on the Erechtheion column with gold line accents between fluting and on specific beads. Dimensional callouts establish the proportional layout of the volutes, necking, and fluted column shaft.
1 1/8" 5 3/8" 3/8" 1 1/4" 1" 1 1/8" 1/2" 8" 3/4" 1 3/4" 3/4" 1/2" 1/8" 3 3/8" ERECHTHEION BANDING WITH RUBBED GOLD. FOR PATTERN SEE DETAIL C4 ON SHEET A-572 3/4" 1/8" 1/2" 1/8" 1/2" 2'-0" 1'-2" BRAIDED BAND WITH RUBBED GOLD. BASED ON BANDING ON THE ERECHTHEION COLUMN. 3/8" 3/4" 3 1/8" ACANTHUS LEAVES WITH RUBBED GOLD ACANTHUS LEAVES EGG & DART WITH RUBBED GOLD GOLD LINES BETWEEN FLUTING WHERE INDICATED IN INTERIOR ELEVATIONS GOLD LINE WHERE INDICATED IN INTERIOR ELEVATIONS 1/8" 1/8" GOLD LINE RUBBED GOLD RUBBED GOLD ON BEAD BEAD AND ROD DETAIL WITH RUBBED GOLD SCALE: 1 : 3 A2 /A-570 T63 CAPITAL FRONT C1
