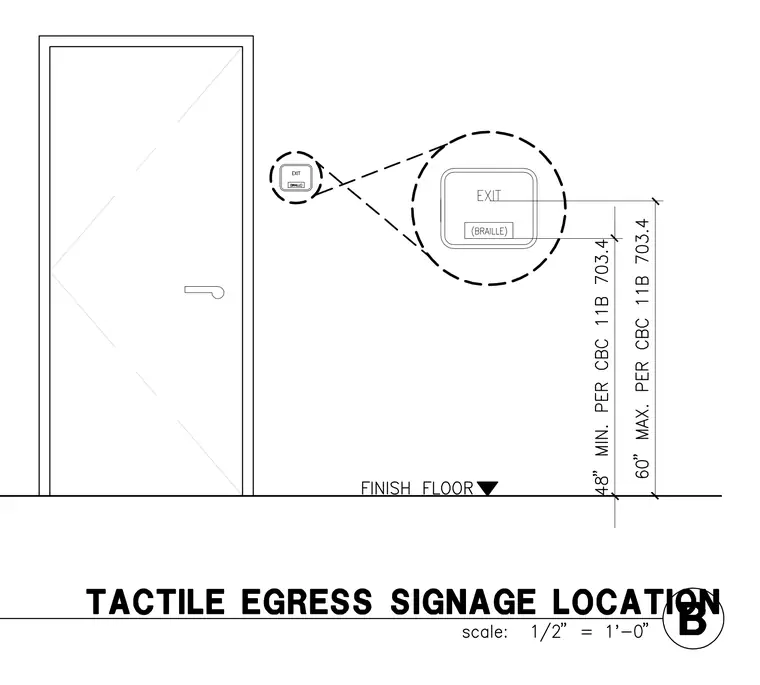

Tactile egress signage is mounted on the wall adjacent to the latch side of the door. The centerline of the sign is positioned between forty-eight inches minimum and sixty inches maximum above the finish floor per California Building Code requirements. The sign includes raised characters and braille text identifying the exit.
