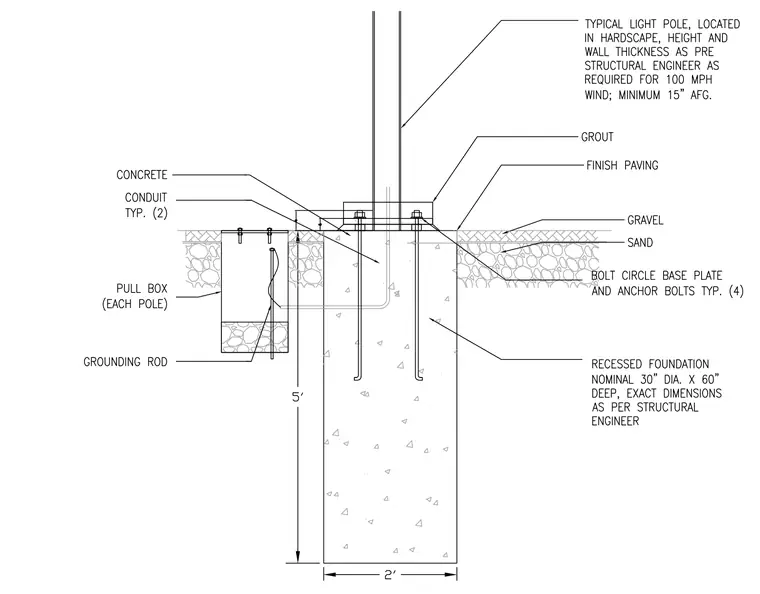

A typical light pole is anchored in hardscape with a base plate and four anchor bolts, set above a layer of grout and finish paving. The pole sits on a recessed concrete foundation pier measuring nominal thirty inches in diameter by sixty inches deep, with exact dimensions per the structural engineer. Two electrical conduits run from the concrete base into an adjacent pull box with a grounding rod. The surrounding hardscape assembly includes sand and gravel layers beneath the finish paving.
